Screw Driven Air Compressor

The screw-driven air compressor GA series is equipped with a high-efficiency permanent magnet motor, which has excellent energy-saving performance, smooth operation and low noise, allowing it to be installed close to the point of air consumption.

The permanent magnet synchronous variable frequency air compressor is a new type of air compressor with excellent quality, high efficiency and energy saving. Currently, only a few advanced countries and regions in the world have this technology. It is a high-end trend in the future development of the air compressor field. Its design The concepts and technical means have broken through the traditional technical concepts and integrated the current advanced technical elements.

The permanent magnet synchronous variable frequency air compressor always operates under load and has no unloading operation, so there is no waste of power. The efficiency of the permanent magnet synchronous motor is very high. Compared with the efficiency of ordinary motors, it is at least 2% higher. It uses less energy to produce greater torque. The energy saving effect is significant, and the energy consumption is maintained at an economical level.

The permanent magnet synchronous variable frequency air compressor is equipped with a high-efficiency permanent magnet synchronous motor (PM motor). Compared with ordinary motors, it is smaller and more energy-saving. When installed with a dedicated inverter, it will achieve energy saving that ordinary induction motors cannot match. Effectively, it uses high-performance rubidium iron boron permanent magnets that do not lose magnetism at a temperature of 120°C and have a service life of up to 15 years. Its stator coil uses corona enameled wire specially designed for frequency converters, with excellent insulation performance. Due to the strong magnetic permeability of the rotor , the magnetic flux rate is extremely high, so the diameter is very small, and it can be directly installed on the extended shaft of the male rotor, eliminating the need to use a shaft.


Efficient, reliable and durable, the new GA series compressors are based on the above design principles and can provide customers with high-quality compressed air no matter how harsh the operating environment is. At the same time, due to its rich knowledge and experience and pioneering innovative spirit, the series of compressors continue to reduce costs for customers throughout the entire production process and ensure safe, stable and continuous operation.

Overall modular design
Standard container-type compressor. No need to separate parts for shipping. Simply connect the power supply, compressed air and cooling water pipes (for water-cooled models) and it is ready to use.

Oil and gas separator

The doubled design ensures a lifespan of up to 8,000 hours.

Strengthen the effect of pre-separation and separation components. Reduce the amount of residual oil in compressed air. Reduce the load on post-processing equipment.

Reduce the pressure drop in the separator and downstream equipment. Reduces energy loss and low fuel consumption ensures low maintenance costs.

Outstanding screw host
Patented asymmetric rotor profile and carefully designed bearings. Low wear. High reliability

Perfectly achieving the lowest energy consumption under maximum air flow

The newly designed screw rotor reduces energy consumption by 5%-6%

Super energy saving effect. Won the title of Best Product from P&A Magazine

Heavy Duty Oil Filter
Extraordinary oil purification ability. Ensures the cleanliness of the compressor oil system

Improves the reliability of rotors, bearings and gears in harsh environments

The service life is up to 8,000 hours, and the replacement is easy and fast, extending the maintenance cycle and reducing maintenance costs.

Loading and unloading valve
Through adding/unloading control, the output air volume of the compressor is adjusted to ensure the stability of the system pressure.

Simple structure. Few moving parts. No maintenance required

High efficiency motor
TEFC IP55 motor. Able to operate stably and permanently in harsh environments up to 55°C

Achieve maximum overall machine efficiency

Heavy Duty Air Filter
Two-step dust removal and filtration system. The filtration accuracy is as high as 99.9%, suitable for various heavy dust environments

The pre-separation process can reduce the dust removal burden of fine filtration. Extend the life of the filter element without reducing the filtration effect

Protect compressor parts. Ensure air quality. Extends the service life of the entire air system

Cooler

Enhanced cooler ensures normal operation of the compressor at high temperatures

Cooling fan

High power cooling fan

Ensure that the frequency conversion cabinet operates at the optimal operating temperature

Soda separator
The aftercooler with built-in water separator can instantly separate 100% of the condensate water. Provide customers with better quality compressed air

The large-diameter water outlet avoids the risk of blockage and ensures worry-free operation with minimal maintenance costs.

RXD synthetic motor oil
Better lubrication performance. Provide 24-hour protection for running components

The replacement cycle is extended. Reduce the number of services. Reduced maintenance costs

Excellent antioxidant and emulsifying properties. Ensure continued high quality

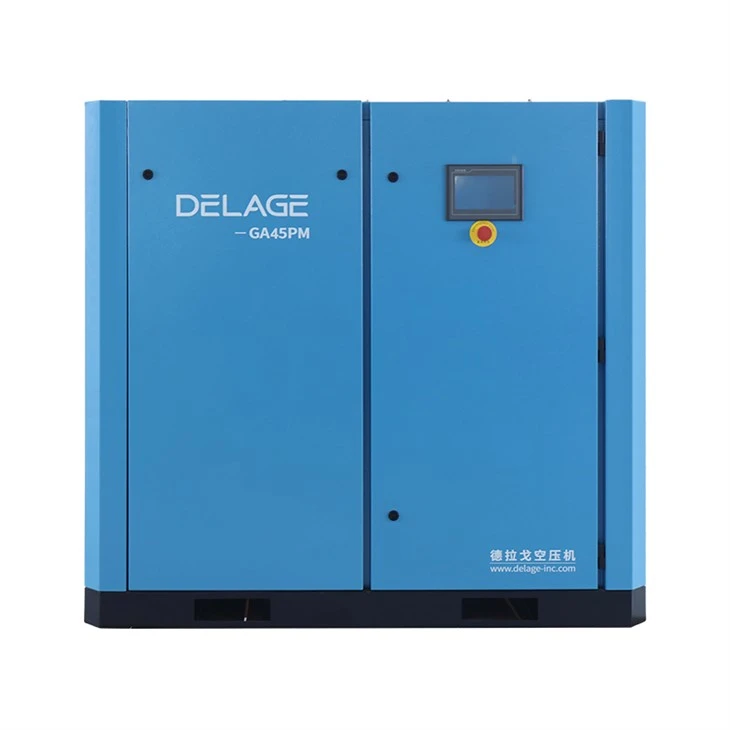

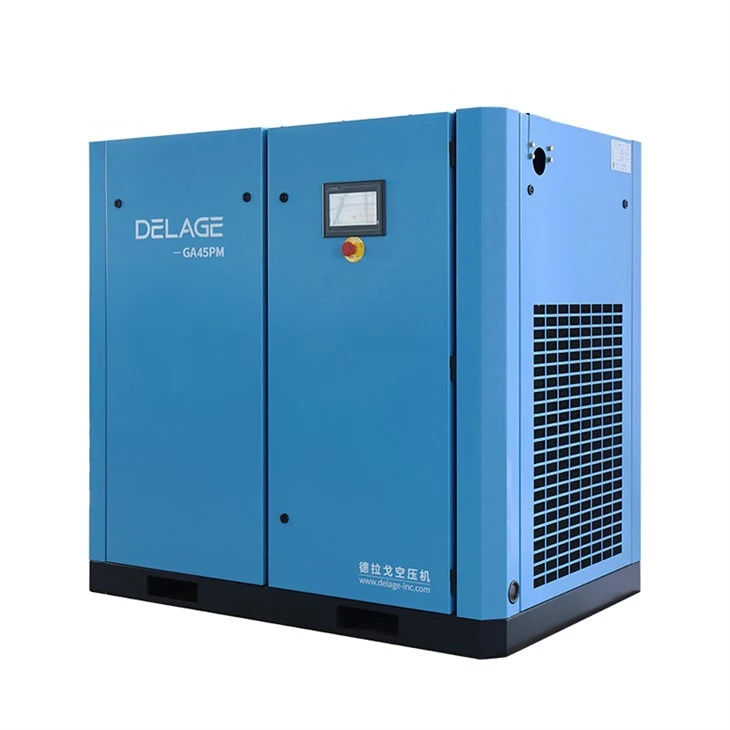

GA45PM-8 screw driven air compressor
Model		GA45PM-8
cooling method		air cooling
Exhaust volume/exhaust pressure (m/min)/(Mpa)		7.6/0.8
Ambient temperature (℃)		-5～+45
Noise dB(A)		72±2
Exhaust temperature (℃)		≤ambient temperature +15℃
Lubricant capacity (L)		30
Gas oil content (ppm)		3~5ppm
transfer method		direct drive
safety valve set pressure		≤Rated exhaust pressure×1.2 times MPa
Dimensions	Length(mm)	1490
	Width(mm)	950
	Height(mm)	1400
Net weight(kg)		880
Connection size		G 1 1/2



Introduction



1. The high-efficiency aluminum plate-fin heat exchanger is designed with a maximum temperature of 230°C.

2. Strong permeability, good heat transfer performance, improved "temperature and pressure" to reduce energy consumption.

2. The unique fin structure increases the secondary heat exchange area, promotes turbulence, and improves the heat transfer coefficient.

3. The heat exchange area is 30% larger than the standard in the same industry, with a large margin, which improves the heat transfer coefficient and achieves the optimal cooling effect.

4. Achieve the best state of the cooling and lubrication system

5. Easy to clean.

6. Designed to reduce the temperature of super coolant, which can optimize the operating status of vacuum pump components and extend the life of the machine.

7. Efficient cooling capacity to improve operating efficiency

8. Adequate redundant design allows the system to operate normally at the maximum ambient temperature of 43°C

9. Use a temperature control valve to control the temperature of the lubricating oil entering the main engine.

1. Integrated functions of temperature control valve and oil filter seat

2. Ensure the smooth flow of super coolant inside the system

3. The temperature control valve controls the temperature of the exhaust system within a suitable range.

4. Control the oil temperature to not be lower than the ambient temperature +40°C to prevent water vapor in the oil-gas mixture from escaping and causing emulsification of the coolant.

5. The temperature sensing element automatically controls the proportion of coolant entering the cooler and bypassing according to the exhaust temperature to achieve the purpose of temperature control.

6. Keep the temperature of the coolant in the optimal range and extend the service life of the coolant.

7. Easy to install and maintain

8. Simplify pipelines, reduce joints, and reduce pressure loss and oil and gas leakage probability

1. Original imported filter material, foldable filter element

2. The filter paper increases the filtration area by 30%, has long service life and small pressure drop.

3. Large filtration area, small filtration resistance, and good filtration effect

3. Efficient dust removal and effective protection; extend the service life of the main engine, super coolant, negative pressure gas-liquid separator core and other components

1. Eliminate the traditional PLC control scheme and have built-in dual PID control for pressure and temperature, making the control more intelligent.

2. High-performance air compressor-specific touch screen, high-end image, sensitive touch response, adaptive vacuum pump control program, easy to operate.

3. Advanced vector control algorithm optimizes product adaptability while adjusting the best performance output to improve system operation reliability; the frequency converter is compatible with permanent magnet motor control.

4. Reliability and safety protection: For various harsh application situations of vacuum pumps, it provides a high overload service coefficient, configures EMC filters, and sets up a variety of early warning and protection functions to reduce the probability of failure during user use.

1. All models use IE4 level (GB1 energy efficiency) ultra-efficient motors;

2. IP55 protection level.

3. The motor windings and magnets are in a closed and clean space to avoid contamination and demagnetization;

4. All motors adopt SmCo magnet design, with higher demagnetization temperature and more reliable product quality.

5. All motors have winding temperature sensors to monitor the internal temperature of the motor in real time, with high temperature warning and trip protection.



The rotary compressor is a new type of compressor. Its motor does not need to convert the rotary motion of the rotor into the reciprocating motion of the piston. Instead, it directly drives the rotating piston to rotate to complete the compression of the refrigerant vapor.

This kind of air compressor is more suitable for small air conditioners, especially for household air conditioners. For example, the rotary air compressors produced by American General Electric Company and Wopu Company are designed with better overheating prevention and lubrication devices. It uses a cooling method that leads part of the refrigerant liquid from the condenser to the compression chamber through piping and sprays it in the cylinder, which improves the cooling effect.

A screw air compressor is a type of air compression equipment commonly used in industrial and commercial applications. Their main purpose is to compress a large amount of air into a smaller volume and provide high pressure and high flow rate of compressed air.



The purpose of using a screw air compressor is as follows



1. Providing power: Screw air compressors are the power source for many industrial equipment and tools, such as pneumatic tools, spray painting equipment, refrigeration equipment, etc. They compress air to high pressure and then pipe it to equipment that requires compressed air for power.



2. Store energy: An air compressor can store compressed air in an air tank for emergency use. This method of storing energy can cope with peak gas consumption and sudden gas consumption, providing a stable and continuous supply of compressed air.



3. Processing and production: Screw air compressors play a key role in many production processes. They are used in gas separation, pipeline transportation, material transportation and other processes to provide stable compressed gas and play a vital role in many industrial fields.



Screw air compressors can also be integrated with other equipment and systems, such as cooling systems, air conditioning systems, pumping stations, etc., to achieve wider applications and benefits.



To sum up, different applicable scenarios also determine the market positioning, advantages and disadvantages of the two types of compressors.
